The global push towards sustainable and clean energy solutions has accelerated the development of renewable energy technologies such as solar and wind power. These sources are abundant and environmentally friendly, but their intermittent nature poses challenges for reliable energy supply. As a result, energy storage systems have become a crucial component in modern energy management, enabling the storage and delivery of power when generation is low or demand peaks.
At the heart of these energy storage solutions are Energy Storage Cable Assemblies — specialized cable systems designed to ensure efficient, safe, and stable electrical connections within storage units. Their role is vital in transmitting high currents between battery modules, inverters, and control systems, making them indispensable in renewable energy infrastructure.
Overview of Energy Storage Cable Assemblies

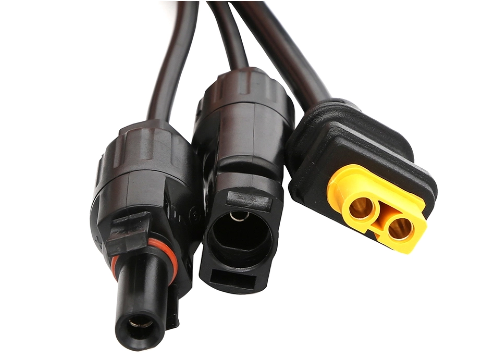

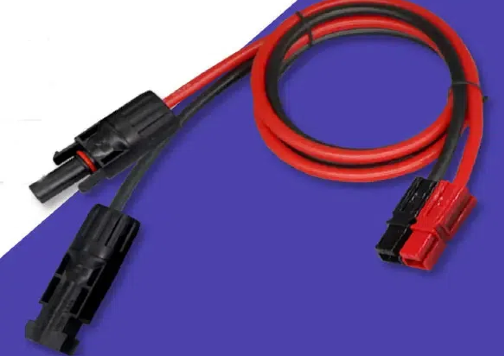

An Energy Storage Cable Assembly is a customized electrical cable system designed specifically for energy storage applications. Its primary function is to transmit electrical power safely and efficiently from storage units, such as battery banks, to power converters or loads.
Key Functionalities
High current transmission: These assemblies must handle substantial current loads due to the high power output of modern energy storage units.
Reliable connections: Secure, low-resistance connections between battery cells, modules, and power electronics are critical to system performance and longevity.
Environmental resistance: Cable assemblies are often exposed to harsh environmental conditions, requiring robust protection against heat, moisture, UV radiation, and mechanical stress.
Typical Components
Conductors: Usually made from copper or aluminum, conductors provide the pathway for electrical current.
Insulation: High-quality insulating materials ensure electrical safety and prevent short circuits.
Sheathing: Protective outer jackets made from flame-retardant, UV-resistant, and weatherproof materials shield the cable.
Terminals and connectors: Precision-engineered ends facilitate quick and reliable connections with battery terminals, inverters, or other system components.
Performance Requirements
Energy storage cable assemblies must meet stringent standards for:
High voltage and high power handling: To accommodate growing energy storage capacities.
Thermal stability: To endure temperature fluctuations without degradation.
Mechanical durability: To withstand vibration, bending, and installation stresses.
Compliance with safety standards: Such as UL, IEC, and other international certifications to ensure safe operation.
Application 1: Solar Energy Storage Systems
Solar energy storage systems are an essential component of the renewable energy landscape. By integrating photovoltaic (PV) panels with energy storage units, these systems ensure a continuous power supply even during nighttime or overcast conditions. The energy harnessed during peak sunlight hours is stored in batteries and later discharged when solar generation drops. This not only maximizes the use of solar power but also enhances energy independence and grid stability.
Role of Energy Storage Cable Assemblies
In solar energy storage systems, Energy Storage Cable Assemblies serve as the critical electrical bridges between various system components. They connect battery modules to power inverters, allowing stored DC electricity to be converted into AC electricity for residential, commercial, or grid applications. These assemblies ensure low-resistance, high-conductivity connections that are essential for efficiency and system longevity.
Whether installed in rooftop solar arrays, solar farms, or commercial solar-plus-storage projects, these cable assemblies are engineered to handle high currents and voltages safely and consistently.
Typical Deployment
Series and parallel connections: Battery banks in solar energy systems are often configured in series to increase voltage or in parallel to increase capacity. Each configuration requires multiple, precisely rated cable assemblies to ensure balanced current distribution and reliable operation.
Modular architecture: Solar systems are increasingly modular to support scalability and ease of maintenance. Modular Energy Storage Cable Assemblies allow for quick additions or replacements without interrupting system performance, supporting growth in system capacity over time.
Key Performance Demands
Thermal stability: The generation and storage of electricity inevitably produce heat. Cable assemblies must be constructed from materials that can withstand prolonged exposure to elevated temperatures without degrading or deforming.
Fire resistance: Safety is a top priority in solar installations, especially those located in buildings. Cable assemblies must meet stringent fire-retardant standards to mitigate risks in the event of short circuits or overheating.
UV resistance: Outdoor installations expose cable assemblies to intense UV radiation. To ensure long-term durability, these cables require UV-resistant sheathing that prevents cracking, fading, or loss of insulating properties under sunlight exposure.
Application 2: Wind Energy Storage Systems
Wind energy systems convert kinetic energy from the wind into electrical power. However, wind is highly variable and unpredictable, making energy storage essential for stabilizing output and maintaining a consistent power supply. Batteries are commonly used to store excess wind energy, which can be released during low wind periods.
Cable Assembly Functions
In this context, Energy Storage Cable Assemblies are pivotal in linking battery storage modules to power converters, controllers, and the grid. These connections enable rapid charge and discharge cycles, ensuring that the energy harvested by wind turbines is efficiently stored and utilized.
The assemblies also help support grid services such as frequency regulation, peak shaving, and emergency backup by enabling high-speed energy transfer between the battery system and other components.
Installation Challenges
Tower and nacelle wiring: Wind turbines are vertical structures that house power equipment in nacelles located at the top of the tower. Installing cable assemblies inside these confined spaces requires flexibility and precision, as cables must run vertically over long distances while withstanding continuous movement.
Environmental conditions: Wind farms are often situated in remote or offshore locations where conditions are harsh. Cables are exposed to wind-driven moisture, freezing temperatures, and vibration from turbine operation. This makes cable durability a major concern.
Material Requirements
UV and weather resistance: For external installations or partially exposed components, Energy Storage Cable Assemblies must be built with weatherproof, UV-resistant materials that endure years of sun, wind, and rain exposure.
Low-temperature flexibility: Cold climates can make ordinary cables brittle. Wind energy systems require assemblies that maintain flexibility and mechanical performance even at sub-zero temperatures.
Mechanical toughness: Due to the constant motion of turbine blades and tower sway, cables inside wind turbines are subject to vibration and movement. Reinforced insulation and durable jacketing materials help maintain structural integrity under such mechanical stress.
Application 3: Grid-Scale Battery Energy Storage Systems (BESS)
Grid-scale battery systems, often referred to as Battery Energy Storage Systems (BESS), are massive energy reserves designed to balance supply and demand on national or regional grids. These systems are crucial for peak load shaving, grid frequency control, and integrating intermittent renewables into the energy mix.
Cable Assembly Roles
In BESS installations, Energy Storage Cable Assemblies play a vital role in managing large-scale energy flows. They connect battery modules to inverters, transformers, and switchgear. These cable assemblies are designed to handle extremely high current loads while maintaining safe operation and high energy efficiency.
Due to the modular nature of many grid-scale battery systems, cable assemblies must also allow for scalability and serviceability without compromising system uptime.
Advantages of Modular and Quick-Connect Designs
Modular installation: Grid-scale storage systems often use containerized battery modules. Modular Energy Storage Cable Assemblies simplify setup by providing pre-engineered, plug-and-play solutions that speed up deployment.
Quick-connect connectors: Maintenance and upgrades can be conducted more efficiently using quick-connect terminals, which allow for fast and secure disconnection and reconnection without specialized tools.
Safety and Compliance
To operate at such high power levels, BESS cable assemblies must conform to international standards such as:
UL and IEC certifications: Compliance ensures safety and interoperability with other certified system components.
Fire resistance and low smoke properties: Especially important for indoor or underground BESS installations to reduce risks during electrical faults.
Mechanical and environmental resilience: Cables must withstand exposure to dust, moisture, and mechanical wear over decades of continuous use.
Application 4: Microgrid and Off-Grid Energy Systems
Microgrids and off-grid systems are becoming increasingly popular in remote areas, industrial sites, military bases, and disaster-prone regions. These systems operate independently or semi-independently from the main power grid and often combine multiple renewable energy sources with battery storage for reliability.
Cable Assembly Requirements
Energy Storage Cable Assemblies in these systems must be versatile and adaptable to different energy configurations. Whether integrating solar, wind, or backup generators, the cable assemblies must support multi-source connectivity and dynamic load demands.
Multiple inputs and outputs: Cable assemblies must handle power flows from various sources to the battery bank and from the battery to multiple loads or converters.
Compact and robust connectors: In mobile or temporary installations, such as disaster relief or military operations, space is limited and reliability is paramount. Cable assemblies must be compact, easy to handle, and resilient to frequent movement and reconnection.
Lightweight, durable construction: For mobile or containerized energy systems, lightweight cable assemblies ease transport and installation without sacrificing performance.
Ensuring Interface Stability
Microgrids may experience frequent configuration changes due to power demand fluctuations or equipment upgrades. Robust Energy Storage Cable Assemblies ensure secure connections that resist loosening or performance loss over time. Quality connectors reduce downtime and ensure consistent energy delivery in mission-critical environments.
Conclusion
Energy Storage Cable Assemblies are vital to the performance, safety, and reliability of renewable energy systems, including solar, wind, grid-scale storage, and microgrids. They ensure stable high-current transmission and withstand harsh environmental conditions while meeting strict safety standards. Selecting the right assembly—based on power demands, environmental exposure, and compliance—is key to long-term success.
