TOTEK specializes in engineering high-performance Energy Storage Cable Assembly solutions that power the future of renewable energy infrastructure. Designed for grid-scale installations, commercial battery systems, and residential energy storage applications, our cable assemblies deliver industry-leading ampacity, superior safety certifications, and rapid customization capabilities to meet the most demanding energy storage requirements.
Comprehensive Product Portfolio for Every Application

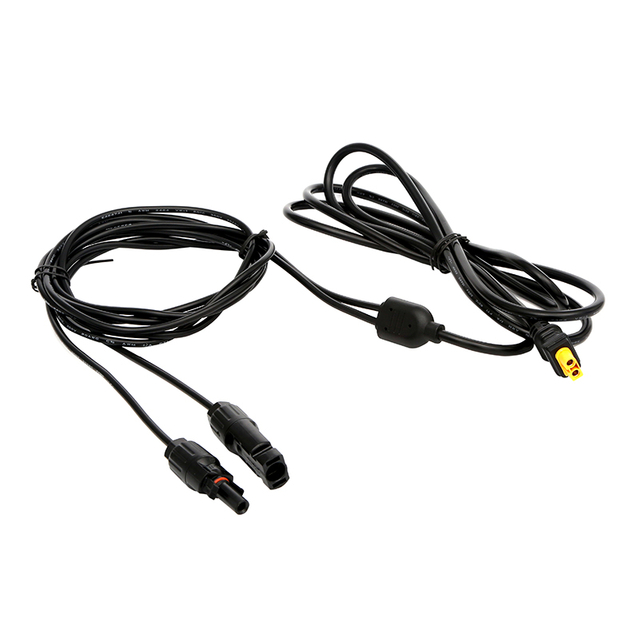

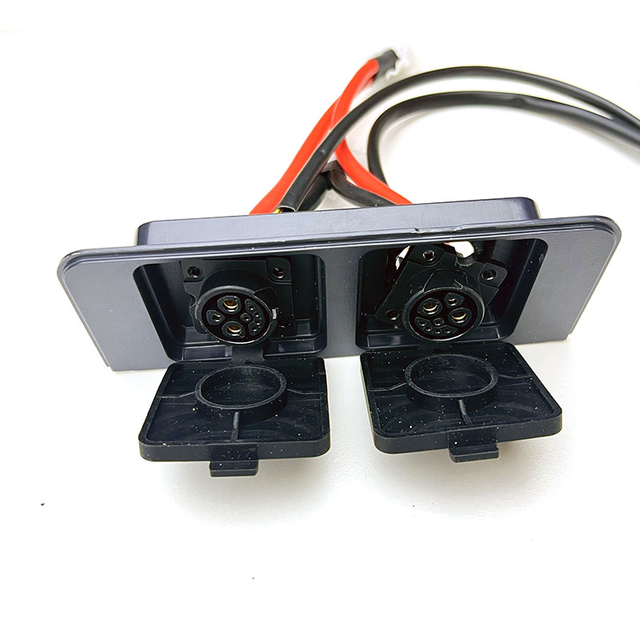

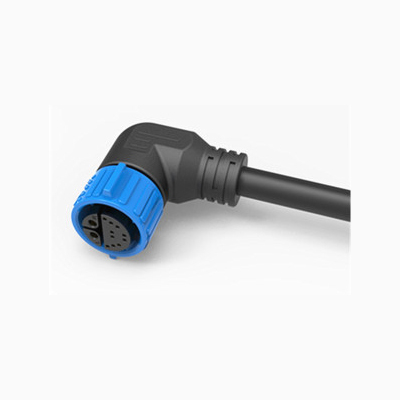

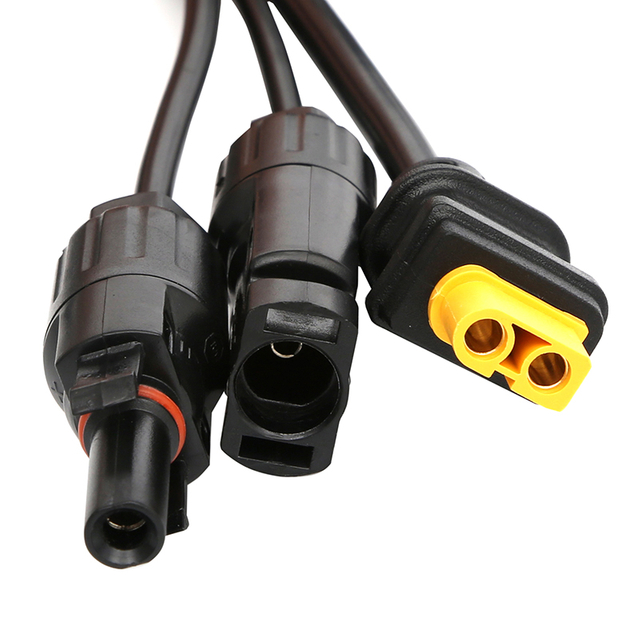

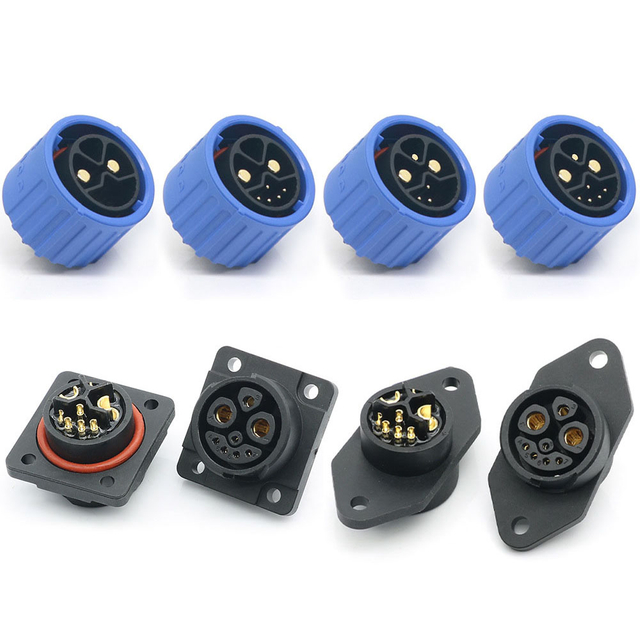

Our Energy Storage Cable Assembly collection encompasses a diverse range of connector configurations engineered for optimal performance across multiple voltage and current specifications. The M23 male assembly delivers reliable charging and discharging connectivity with rated currents up to 50A and IP67/IP68 waterproof protection, making it ideal for demanding outdoor installations. For solar energy applications, our Solar Energy Storage Cable Assembly featuring MC4 connectors provides secure, weather-resistant connections rated for 30A at 1000V with exceptional contact resistance below 0.35mΩ.

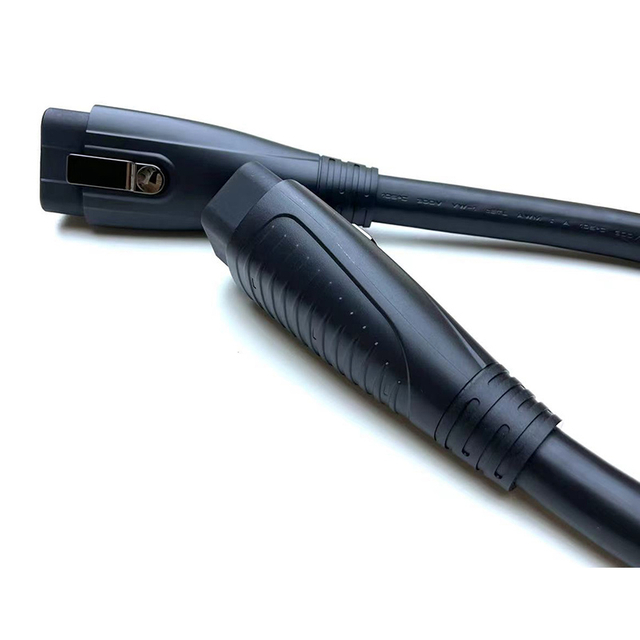

Our Big current Energy Storage Cable Assembly options include advanced multi-pin configurations. The 2+12 pin assembly supports high-speed data transmission alongside power delivery with 100A capacity on power pins and integrated signal channels. The low loss Energy Storage Cable Assembly design incorporates high-quality brass contacts with silver plating, ensuring minimal energy dissipation during operation. Our integrated Energy Storage Cable Assembly solutions combine power and signal pathways in compact housings with PA66+GF fire-resistant materials rated UL94V-0, meeting stringent safety standards for commercial installations.

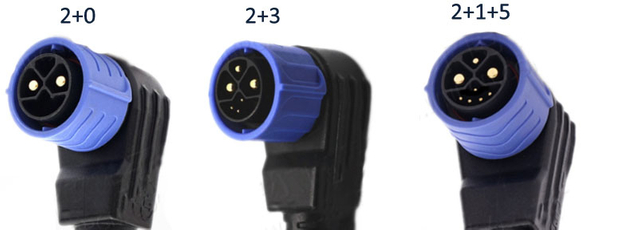

For specialized requirements, we offer flat flex Energy Storage Cable Assembly configurations and optical Energy Storage Cable Assembly options that integrate fiber optic communication channels. The M25 Battery Charging connector series features wear-resistant, IP67 waterproof construction with superior pressure resistance and wide operating temperature ranges from -40°C to +105°C. Our d sub Energy Storage Cable Assembly variants and hsd Energy Storage Cable Assembly designs provide versatile connectivity for advanced battery management systems requiring multiple signal interfaces.
Customization Excellence and Engineering Support
TOTEK's comprehensive customization capabilities transform your energy storage vision into reality. Our engineering team collaborates with clients from initial concept design through volume production, offering complete flexibility in cable gauge selection, connector pin configurations, housing materials, and cable lengths. We support custom wire specifications ranging from 8AWG to 22AWG with various insulation materials including PVC, PVT, and LSZH options to match your environmental and regulatory requirements.
Our rapid prototyping service delivers functional samples within days, accelerating your product development cycle. Each custom Energy Storage Cable Assembly undergoes rigorous testing including temperature rise verification, insulation resistance measurement exceeding 100MΩ, contact resistance validation, and IP rating confirmation. We maintain comprehensive project expertise across residential, commercial, and utility-scale installations, ensuring your cable assemblies meet specific application demands from the start.
Superior Technical Specifications and Certifications
All TOTEK Energy Storage Cable Assembly products are engineered to exceed international standards including IEC 62852, UL 4703, and UL 4128 for stationary energy storage systems. Our assemblies feature rated voltages up to 1500V DC with current handling capabilities from 30A to 350A depending on configuration. The temperature operating range spans -40°C to +125°C, ensuring reliable performance in extreme climates from arctic installations to desert solar farms.
Key technical advantages include contact resistance below 0.35mΩ for maximum energy efficiency, mating endurance exceeding 3000 cycles for long-term reliability, and insertion/extraction forces optimized below 100N for ease of installation. Our assemblies incorporate touch-proof safety designs, 360-degree rotating plug mechanisms for installation flexibility, and color-coded polarity identification to prevent connection errors. The fire-resistant UL94V-0 housing material and halogen-free cable options ensure compliance with stringent fire safety regulations.
Comprehensive certifications including UL, TUV, CE, and RoHS demonstrate our commitment to quality and environmental responsibility. Each product batch undergoes high-voltage compression strength testing at DC500V with leakage current below 5mA, vibration resistance verification, and electromagnetic compatibility validation to guarantee performance in real-world energy storage environments.
Frequently Asked Questions
What current ratings are available for energy storage cable assemblies?
TOTEK offers Energy Storage Cable Assembly solutions spanning 30A to 350A continuous current ratings. Our standard configurations include 30A MC4 solar connectors, 50A M23 charging assemblies, 100A multi-pin power connectors, and specialized high-current options up to 350A for utility-scale battery installations. Custom ampacity specifications can be engineered based on your wire gauge selections and thermal management requirements.
How do I select the right connector type for my battery system?
Connector selection depends on several critical factors including voltage level, current requirement, environmental exposure, and communication needs. For residential systems below 100A, our M23 or MC4 series provide reliable solutions. Commercial installations requiring integrated signal channels benefit from our multi-pin assemblies. For detailed technical guidance, explore our service support resources or consult directly with our engineering team to match specifications to your application.
What certifications should energy storage cables have?
Essential certifications include UL 4703 for photovoltaic wire, IEC 62852 for connectors in PV systems, and UL 4128 for stationary energy storage systems. All TOTEK assemblies carry appropriate certifications including UL recognition, TUV approval, CE marking for European markets, and RoHS compliance for environmental safety. IP67/IP68 ratings ensure waterproof performance in outdoor installations, while UL94V-0 material ratings guarantee fire resistance.
Can you manufacture cable assemblies with mixed signal and power pins?
Absolutely. Our integrated Energy Storage Cable Assembly designs combine high-current power pins with low-voltage signal contacts within a single connector housing. This enables simultaneous power transmission and battery management system communication, reducing installation complexity and improving system reliability. We offer various pin configurations from 2+5 to 2+12 arrangements, supporting both high-voltage interlock circuits and data communication protocols.
Partner with TOTEK for Energy Storage Excellence
Transform your energy storage infrastructure with TOTEK's precision-engineered cable assembly solutions. Our combination of technical expertise, comprehensive customization capabilities, and rigorous quality standards ensures your project achieves optimal performance, safety, and longevity. Whether you're developing residential battery systems, commercial microgrids, or utility-scale energy storage facilities, TOTEK delivers the connectivity solutions that power sustainable energy futures.
Ready to discuss your energy storage cable requirements? Contact us today to connect with our engineering team for customized consultation, technical specifications, and rapid quotation services that accelerate your project timeline.
