Solar power systems are a long-term investment, with most solar panels now warranted for 25 years. But what about the connectors that link them all together? If a single connector fails, it can take down an entire string, leading to costly downtime and lost revenue. The shocking truth is that most standard-certified solar connectors are not designed or tested to survive 25 years in harsh outdoor environments.
This article explains the four main environmental forces that destroy solar connectors, whythe standard IEC 62852 test is not enough, and how Totek’s “Qualification Plus” program ensures true 25-year reliability.

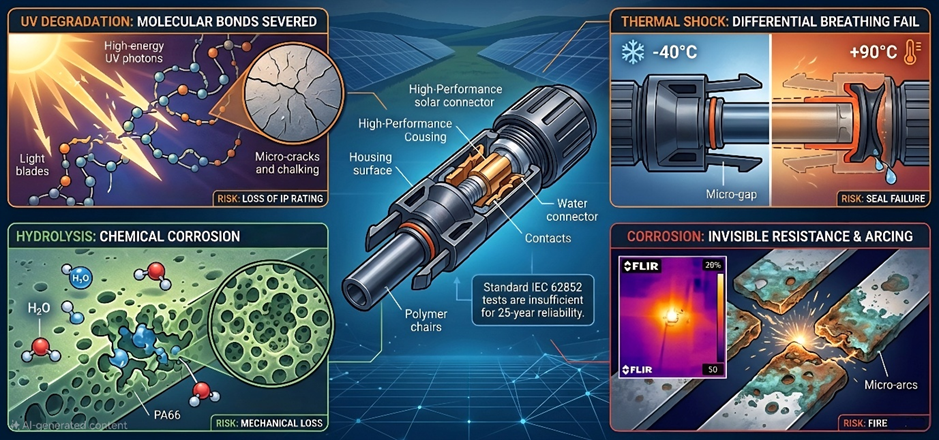

The Four Forces That Destroy Outdoor Connectors
Connectors on a rooftop or in a solar field are under constant attack from the environment. Four main failure modes will degrade and destroy a connector that is not properly engineered for long-term survival.
1 UV Degradation:
Sunlight contains powerful UV radiation that breaks down the polymer chains in plastic housings. This leads to chalking, brittleness, and micro-cracks, which allow moisture to get in.
2 Thermal Shock:
The daily cycle from cold nights (-40°C) to hot days (+90°C) causes materials to expand and contract. If the metal contacts, plastic housing, and rubber seals expand at different rates, the seals will eventually fail.
3 Hydrolysis:
This is a chemical attack where moisture and high temperatures break down the polymer bonds, especially in standard plastics like Nylon (PA66). The material loses its mechanical strength and can no longer protect the electrical connection.
4 Corrosion:
Salt mist from coastal areas and pollutants from industrial zones can oxidize the metal contacts inside the connector. This increases electrical resistance, creating hot spots that can lead to arcing and even fires [1].
Why Standard IEC 62852 Testing Is Not Enough
The industry standard for solar connectors is IEC 62852. It is a good baseline test, but it was designed to find early manufacturing defects, not to predict 25-year performance. Research from the U.S. National Renewable Energy Laboratory (NREL) shows a major gap between the standard test and a 25-year service life [2].
“Today most PV modules are warranted for 25 years, but the Qualification Test Sequence does not test for 25-year life.” [3]
Here is how the standard IEC test compares to a true 25-year reliability program like Totek’s:
Test
Standard IEC 62852 Minimum
Totek 25-Year “Qualification Plus”
Improvement
Thermal Cycling
200 Cycles
600 Cycles
3x More Rigor
Damp Heat
1,000 Hours
2,000 Hours
2x More Rigor
UV Exposure
500 Hours
1,000 Hours
2x More Rigor
Salt Spray Corrosion
Not Required
480 Hours
New Standard
The USA's govt. organization National Renewable Energy Laboratory (NREL) research suggests that 200 thermal cycles represent only about 10 years of field exposure. To simulate 25 years, a connector needs to survive 500-600 cycles [3]. In fact, independent testing by PVEL found that 15% of standard IEC-certified connectors failed when subjected to this more rigorous 600-cycle test.
The Totek Solution: Engineering for 25-Year Survival
At Totek, we don’t just assemble connectors; we engineer them for 25-year survival in the harshest environments. Our process is built on three key pillars that go far beyond the industry standard.
Our certifications underscores our commitment to quality.
1 Material Science is the Foundation
We partner with Tier-1 material suppliers like SABIC and Celanese to select advanced polymers that are proven to resist UV, hydrolysis, and thermal shock. For our cable assemblies, we use high-performance XLPO (Cross-Linked Polyolefin) cables like the Nexans ENERGYFLEX® series, which are dual-certified to UL 4703 and EN 50618 standards and designed for a 30 to 40 year lifetime [4].
2 “Qualification Plus” Testing
We test our products to a higher standard, following the “Qualification Plus” framework developed by NREL. This means 3x more thermal cycles, 2x more damp heat, and 2x more UV exposure than the IEC standard requires. We also add a 480-hour salt spray test, which is critical for preventing corrosion but is not even required by the current IEC standard.
3 Post-Aging Verification
This is the most critical step. We don’t just test new parts. We take connectors that have already survived the full aging sequence (1000h UV + 600 thermal cycles + 2000h damp heat) and then we perform the final verification tests. The aged connector must still pass a 1-meter water immersion test (IP67) and a high-voltage electrical test. This is the only way to prove that the connector will not leak after 25 years of abuse.
Totek 25-Year “Qualification Plus” validation process
Totek’s validation process follows a strict five-step sequence. It starts with 1,000 hours of UV pre-conditioning using a Xenon Arc lamp to degrade the polymers and seals, just like years of direct sunlight would. After that, the same connectors go through 600 thermal cycles from -40°C to +90°C, which stresses the material expansion and puts the seals under repeated pressure. Next comes 20 humidity freeze cycles, where moisture is forced into any micro-cracks and then frozen to expand the damage. The connectors then go into a damp heat chamber at 85°C and 85% humidity for 2,000 hours to accelerate hydrolysis and corrosion. The final step is post-aging verification, where the same connectors must still pass a full IP67 water immersion test and a high-voltage electrical test. The most important detail here is that this is a sequential process.
The same set of connectors must survive every single step, one after another. We do not use fresh samples for each stage. That is the only way to prove true 25-year durability.
- Ma Chao (Founder & CEO, Totek Int'l Corp.).
Proven in the Field : 1.3 Million Units, Zero Failures
This rigorous approach is not just theoretical. Totek has over 1.3 million solar cable assemblies in the field, some for over 8 years, with zero reported field failures due to connector degradation. We bring an automotive-grade quality mindset (IATF 16949) to the solar industry, with full traceability from the raw material resin lot to the final product on your rooftop.
Don’t let a standard-issue connector compromise your 25-year solar investment. Contact the Totek engineering team to learn more about our 25-year reliability program and how we can protect your project from premature failure.
