Selecting the appropriate Energy Storage Cable Assembly is crucial for ensuring the efficiency, safety, and longevity of your battery system. This comprehensive guide will walk you through the essential steps to make an informed decision tailored to your specific application needs.
With the rapid advancement of renewable energy technologies, energy storage systems have become integral to modern power infrastructures. The choice of Energy Storage Cable Assembly directly impacts system performance, safety, and durability. Therefore, understanding the nuances of cable selection is vital for optimal system integration.
Step 1: Understand Your Battery System Requirements
Before choosing any cable components, it is essential to fully understand the specific requirements of your battery system.
1. Battery Type
Different battery technologies have unique operational demands, which must be matched with suitable cable assemblies:
Lithium-ion Batteries
These are widely used in modern energy storage systems due to their high energy density, efficiency, and long cycle life. However, they also operate at higher voltages and can generate significant heat during charge/discharge cycles. As such, energy storage cable assemblies for lithium-ion systems must feature conductors that support high current loads and insulation that offers excellent thermal resistance and fire retardance.
Lead-acid Batteries
While less energy-dense, lead-acid batteries are highly robust and cost-effective. They are often used in backup power systems. Cables used in these systems should be corrosion-resistant due to the possible presence of acid vapors and should maintain mechanical durability over time.
Solid-state Batteries
Still emerging in commercial markets, solid-state batteries offer increased safety and higher energy capacity. These systems benefit from cable assemblies with enhanced insulation properties to protect against internal short-circuits and to preserve the integrity of sensitive electronic interfaces.
2. Voltage and Current Ratings
Understanding your system's voltage and current is non-negotiable when choosing the right energy storage cable assembly. The cables must be rated to handle the expected electrical load without experiencing voltage drops, overheating, or insulation failure. For example:
Low-voltage systems (12V–48V DC) require cables with moderate conductor sizes and general-purpose insulation.
High-voltage systems (up to 1500V DC), common in utility-scale or commercial ESS installations, demand specialized cable assemblies with thick insulation walls, large conductor cross-sections, and high dielectric strength.
Failing to select a properly rated cable can lead to system inefficiencies or, worse, serious safety hazards such as fires or electric shocks.
3. AC or DC System
Identify whether your system operates using direct current (DC) or alternating current (AC):
DC Systems (common in solar and battery applications) require cables with low resistance to reduce voltage drops and often need shielding to mitigate electromagnetic interference (EMI).
AC Systems, especially in grid-tied setups, may involve multiple phases and higher frequencies, which introduce different stresses on cable assemblies such as inductive heating and impedance variations.
Understanding the current type ensures the energy storage cable assembly is designed to perform efficiently in its intended electrical environment.
Step 2: Determine Cable Assembly Specifications
Once the system's electrical requirements are defined, it’s time to specify the physical and material properties of the cable assembly.
1. Conductor Material
Copper
Offers excellent electrical conductivity and flexibility, making it ideal for high-performance systems where minimizing resistance is critical. Though more expensive, copper is preferred in applications that demand compact design and superior thermal performance.
Aluminum
More cost-effective and lighter than copper. Suitable for large-scale installations where budget constraints exist, or in systems where weight reduction is essential. However, aluminum cables typically require larger cross-sectional areas and careful termination.
2. Insulation and Sheathing Materials
Different environments and temperature conditions necessitate different insulation types:
PVC (Polyvinyl Chloride)
Commonly used due to its flexibility and low cost. It’s suitable for general indoor applications but offers limited resistance to high temperatures and chemicals.
XLPE (Cross-linked Polyethylene)
Known for its excellent thermal and chemical resistance. Often used in outdoor or industrial applications where environmental stresses are high.
Teflon (PTFE)
Offers superior performance in extreme conditions, including high heat and chemical exposure. It is ideal for high-end industrial or aerospace-grade energy storage cable assemblies.

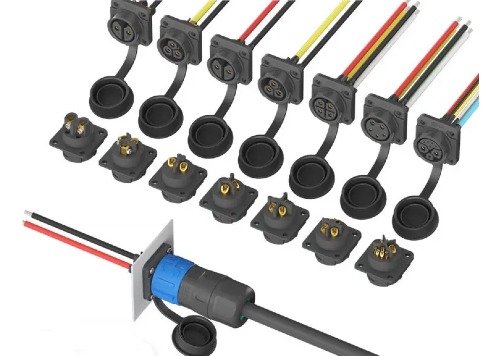

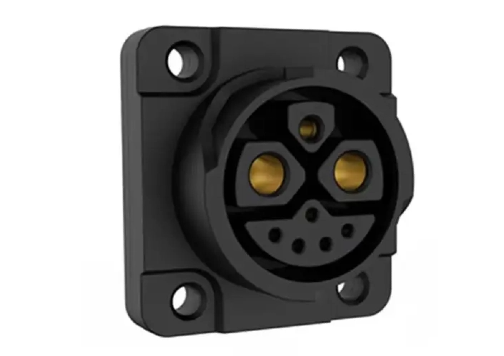

3. Connector Types
Connectors form the interface between the cable and system terminals. Selection should be based on current capacity, voltage rating, mechanical stress, and ease of installation:
Crimped Connectors
Provide reliable mechanical and electrical performance. These are commonly used in high-current battery systems due to their low resistance and firm attachment.
Plug-and-Play Connectors
Suitable for modular energy storage systems that require frequent maintenance or reconfiguration. These connectors are easy to install and reduce the chances of user error.
Step 3: Evaluate Environmental and Mechanical Conditions
The environment in which the cable assembly operates can have a significant impact on its performance and longevity.
1. Installation Environment
Outdoor Installations require cables that are UV-resistant and weatherproof to withstand exposure to sunlight, rain, and fluctuating temperatures.
High-Temperature Environments, such as areas near inverters or enclosed systems with poor ventilation, demand cables with high thermal tolerance to prevent premature degradation.
2. Protection Ratings
Always check the Ingress Protection (IP) rating of the cable assembly:
These ratings are particularly important for outdoor and industrial settings where the risk of exposure to dust, water, or corrosive agents is high.
3. Mechanical Considerations
Flexibility: Needed for compact installations or moving parts. Cables should have a small minimum bend radius and fatigue-resistant insulation.
Abrasion and Chemical Resistance: In harsh environments like factories or power plants, cables are often exposed to oils, solvents, or physical contact. A durable outer jacket can significantly extend service life.
Step 4: Compliance and Certification
Certifications ensure your energy storage cable assembly meets local and international safety standards:
UL 9540: Covers the safety of entire energy storage systems, including associated cabling.
UL 1973: Applies specifically to battery modules and storage-related wiring in stationary applications.
IEC 62933: Provides global guidelines for performance and safety in electrical energy storage systems.
Compliance with these standards guarantees that your cable assembly won’t just work—it will work safely and reliably under expected conditions.
Step 5: Match Assembly to Application Scenario
Each application has its own demands. Matching your cable assembly to its usage scenario ensures optimal functionality.
1. Residential Energy Storage Systems (ESS)
These systems emphasize aesthetics, safety, and ease of installation. Cables should be compact, flexible, and easy to route through walls or small enclosures. Safety certifications are especially important in home environments where user exposure is higher.
2. Industrial and Data Center Backup Systems
Here, reliability is paramount. Cable assemblies must handle large current loads and often run through long conduits. Look for robust insulation, EMI shielding, and mechanical protection. Redundancy and ease of maintenance are also key design considerations.
3. Mobile Power Units and Emergency Systems
These systems require cables that are lightweight, durable, and quick to deploy. Plug-and-play connectors and portable cable assemblies that can withstand repeated handling and environmental exposure are essential.
Common Mistakes and How to Avoid Them
Incorrect Cable Sizing: Using cables with inadequate cross-sectional area can lead to overheating and energy losses.
Improper Connector Selection: Mismatch between connectors and system requirements can cause poor connections and potential failures.
Neglecting Environmental Factors: Failure to consider environmental conditions can result in premature cable degradation.
Overlooking Compliance Standards: Using non-certified cables can lead to safety hazards and legal issues.
Conclusion
Selecting the right Energy Storage Cable Assembly is not merely about matching technical specifications; it's an investment in the long-term performance and safety of your energy storage system. By thoroughly understanding your system's requirements, environmental conditions, and compliance needs, you can make informed decisions that enhance reliability and efficiency.
For tailored solutions and expert guidance, consider consulting with professional manufacturers like Totek. Their experience in providing customized cable assemblies can help ensure your system meets all operational and safety standards.
