What Is An AC Connector

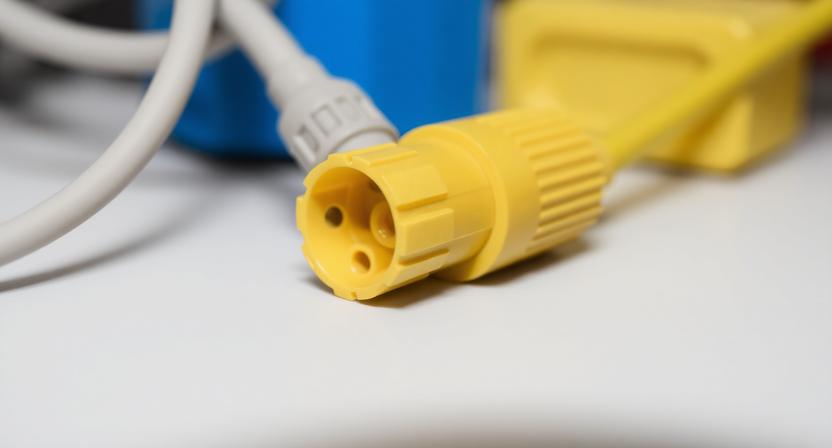

An AC connector acts as the critical bridge between raw grid power and sensitive electronic equipment. While often dismissed as a simple commodity, this interface represents a primary failure point for device safety, regulatory compliance, and operational longevity. Selecting the wrong component does not merely risk a loose connection; it invites thermal runaway, circuit damage, and catastrophic liability in global markets.

The terminology itself creates ambiguity for buyers and engineers. Technically, an AC connector refers to the physical interfaces on the high-voltage input side governed by IEC standards. However, in practical sourcing, the discussion often blurs to include the bewildering array of wall plugs and output jacks found on power supplies. Understanding the distinction is vital for accurate procurement.

Poor specification strategies lead to costly recalls and international logistics nightmares. This guide moves beyond basic definitions. We provide a decision-making framework for specifying, selecting, and replacing power interfaces without compromising safety or efficiency. You will learn to navigate voltage requirements, polarity traps, and the shift toward universal standards.

Key Takeaways

• The Two-Sided Equation: AC connectivity involves two distinct interfaces: the Wall-to-Adapter (AC Main) and the Adapter-to-Device (often DC, but colloquially grouped here).

• The Golden Rule of Matching: Voltage must match exactly; Amperage must be equal to or greater than the device requirement.

• Standardization Wins: Why IEC 60320 standards (C13/C14) are the preferred choice for global hardware scalability.

• Safety vs. Cost: The hidden TCO (Total Cost of Ownership) of using non-certified (non-UL/CE) connectors and cables.

Deconstructing the Ecosystem: Input vs. Output Architectures

To source the correct components, we must first map the signal path. Power delivery involves two distinct physical interfaces, each with unique standards and failure modes.

Clarifying the Signal Path

The ecosystem splits into the "Line Side" and the "Device Side." The AC Input (Line Side) handles the connection from the wall outlet to the power supply unit. For desktop computers or industrial equipment, this is typically a removable cord. This side manages dangerous grid voltages (110V–240V) and requires strict adherence to regional safety codes.

Conversely, the AC/DC Interface often causes confusion. When discussing external power bricks, users frequently refer to the output plug as an AC connector, even though it typically carries Low Voltage Direct Current (DC). Whether dealing with "wall warts" (where the plug is built into the brick) or "desktop bricks" (which have cords on both ends), clear terminology prevents costly ordering errors.

The IEC 60320 Standard (The "Business" End)

For the high-voltage input side, the International Electrotechnical Commission (IEC) 60320 standard allows manufacturers to build one device for the global market. By changing only the external power cord, you adapt the hardware to any country.

This system uses an alpha-numeric code to pair couplers. Odd numbers represent the female connector (cable end), and even numbers represent the male inlet (device panel).

Use Case Mapping: The C13 is the workhorse of the IT industry. However, for compact electronics like laptops, the C5 ("Mickey Mouse") and C7 ("Figure-8") dominate because they occupy less internal volume. Engineers specify high-temperature variants like the C15 for hot environments, such as dense server racks. The C15 looks like a C13 but features a notch to prevent a standard C13 cord (rated for lower temperatures) from being used in high-heat applications.

Global Plugs (The Wall Side)

The other end of the AC connector cable must match the local wall outlet. The IEC categorizes these from Type A (North America) to Type O (Thailand). Managing SKUs for 15 different plug types is a logistical nightmare for hardware vendors.

The "Swappable Cord" Advantage: This is why modular AC cords reign supreme. Instead of manufacturing different power supplies for the UK, EU, and US, a company produces one universal power supply (100V–240V compatible) with a C14 inlet. They simply toss the appropriate regional cord into the box during final packaging. This strategy reduces inventory risk significantly compared to "wall wart" designs with fixed prongs.

Technical Evaluation Logic: Matching Connectors to Power Requirements

Physical fit is only part of the selection process. The electrical characteristics must align perfectly to prevent hardware damage. Engineers use a strict logic matrix when evaluating an AC connector or its DC output counterpart.

The Voltage/Amperage Matrix

Voltage acts as the pressure pushing electricity through the wire. This requirement is non-negotiable. If a device expects 19V, plugging in a 24V supply will likely fry the motherboard. Conversely, undervoltage leads to instability, random shutdowns, or data corruption.

Current (Amperage), however, operates on the "Headroom" concept. The rating on a power supply indicates its maximum capability, not its constant output. You can safely use a 5A power supply for a device that requires only 2A. The device will "draw" only what it needs. The component stays cooler and lasts longer due to reduced stress. The danger lies in the reverse: using a 2A supply for a 5A device causes the adapter to overheat, melt, or catch fire.

Polarity and Pinout (The Hidden Killer)

On the output side of an adapter, polarity mismatches destroy more electronics than any other factor. Devices use specific symbols to indicate whether the center pin of the connector is positive (+) or negative (-).

• Center Positive: The most common configuration. The inner pin carries the positive voltage; the outer barrel is ground.

• Center Negative: Common in music gear (guitar pedals) and some Japanese electronics.

The Risk: A physical match does not guarantee an electrical match. Plugging a Center Positive plug into a Center Negative device creates a direct short circuit across the input protection diodes. This usually results in instant, permanent failure.

Physical Dimensions (The Barrel Jack Problem)

Barrel jacks are notoriously difficult to identify visually. The two most common sizes—5.5mm x 2.1mm and 5.5mm x 2.5mm—look nearly identical. The first number refers to the Outer Diameter (OD), and the second to the Inner Diameter (ID).

Measurement Tactics: If documentation is lost, calipers are essential. A 2.5mm plug might fit into a 2.1mm jack, but the contact will be loose and intermittent, causing arcing and heat. Conversely, a 2.1mm plug will physically refuse to enter a 2.5mm jack because the center pin is too wide. When in doubt, professionals use a spark-free trial-and-error approach with a multimeter or specialized sizing gauges.

Safety, Compliance, and Risk Mitigation

An AC connector serves as a safety gate. Regulatory bodies mandate strict testing because these components handle lethal voltages and high heat.

The Regulatory Landscape

Marks like UL (USA), CE (Europe), FCC (Interference), and RoHS (Hazardous Substances) are not mere stickers; they represent liability shields. In the event of an electrical fire, insurance adjusters verify these certifications. Using uncertified "gray market" connectors shifts the liability directly to the procurement officer or business owner.

Counterfeit Detection: Cheap, uncertified connectors often display visual warning signs. Look for a lack of strain relief (the flexible rubber neck where the cable meets the plug), suspiciously thin wire gauges that heat up under load, or the absence of a fuse in UK (Type G) plugs. A genuine connector feels dense and robust; a fake often feels light and hollow.

Thermal Management

Connectors often fail due to contact resistance. As metal contacts oxidize or loosen over time, resistance increases. Increased resistance generates heat, which accelerates oxidation—a vicious cycle leading to thermal runaway.

The "Hot Plug" Warning: During operation, touch the connector body. It should be warm, but never too hot to touch. If an AC connector is scorching, it indicates internal degradation or wire breakage. This is an immediate red flag requiring replacement before the plastic housing melts or insulation is compromised.

Grounding (Earthing)

Class I devices require a 3-prong connector (with an Earth pin) to provide a path for fault currents. If a wire comes loose inside a metal-cased device, the electricity flows to the ground rather than through the user. Class II devices are "double insulated" and typically use 2-prong connectors (like C7 or C17).

The Earth pin is non-negotiable for medical environments, sensitive audio equipment, and industrial machinery. Bypassing the ground pin using a "cheater plug" creates a severe shock hazard and introduces audible hum in audio signal paths.

Modern Evolution: USB-C and the Decline of Proprietary Connectors

The industry is currently undergoing a massive shift. The proprietary barrel jack is slowly yielding to the universal USB-C standard, driven by EU regulations and user demand.

The Shift to Universal Power

USB Power Delivery (USB-PD) allows a single connector to negotiate voltage. A USB-C charger can communicate with a laptop to deliver 20V, or with a phone to deliver 5V. This smart handshake protocol prevents the "wrong voltage" damage common with barrel jacks. Modern Gallium Nitride (GaN) chargers can deliver up to 240W, covering high-performance laptops that previously required bulky proprietary bricks.

Pros and Cons for Enterprise

Pros: Adoption reduces e-waste and simplifies inventory management. IT departments can stock a single SKU of charger for monitors, laptops, and tablets. It offers immense convenience for users who travel.

Cons: Mechanical fragility remains a concern. The USB-C connector relies on a small, central tongue that is more susceptible to breakage than a robust industrial AC connector or a thick barrel jack. For static environments, traditional connectors often offer better longevity.

The "Locking" Feature

USB-C generally relies on friction to stay connected. In high-vibration environments—like factory floors or medical carts—this is insufficient. Traditional connectors like the IEC 60320 C13 often feature locking mechanisms or retaining clips. While locking USB-C cables exist, they are not yet standard. For mission-critical power, many engineers still prefer the "click" of a locking barrel or IEC cable.

Implementation & Sourcing: A Buyer’s Checklist

When selecting an AC connector solution, look beyond the price tag. Define your success criteria based on the operational environment.

Defining Success Criteria

Evaluate the Mating Cycles. How often will the device be plugged and unplugged? A consumer-grade connector might be rated for 1,000 cycles, while an industrial version is rated for 5,000+. Consider the cable jacket material as well. Standard PVC is fine for offices, but rubber or silicon jackets are required for outdoor use or areas exposed to oil and chemicals.

The "Universal" Trap

Avoid "Universal Universal" adapters that come with 10 different interchangeable tips. While they seem convenient, the connection between the cable and the tip is a weak point. These tips often suffer from poor contact stability and voltage drift. They introduce necessary resistance and are prone to being lost. A dedicated, single-piece connector is always more reliable.

Procurement Strategy

OEM vs. Aftermarket: Buying aftermarket power supplies is safe if you verify the specs. Ensure the safety certifications (UL/ETL) are genuine. The electrical specifications must match the device's needs exactly.

Redundancy: Stocking spare standard cords (C13, C5) offers a high ROI. Cords are often lost during office moves or damaged by furniture. Having a box of certified replacements prevents employee downtime for a fraction of the cost of a new power supply.

Conclusion

Selecting the right AC connector is a balancing act between physical compatibility and electrical safety. While the plug must fit the hole, that physical fit represents only 20% of the battle. The remaining 80% involves verifying voltage matching, amperage headroom, polarity, and safety certifications.

We recommend pivoting to a "Safety First" mindset. Whether you are replacing a lost cord for a monitor or sourcing components for a new product line, prioritize standardized, certified interfaces like IEC 60320. This approach minimizes long-term liability, simplifies global logistics, and ensures your equipment operates within its safe thermal limits. A cheap connector is never a bargain if it compromises the device it powers.

FAQ

Q: Can I use a higher amperage AC connector than my device requires?

A: Yes. Amperage represents the maximum current a power supply can deliver. The device will only "draw" the current it needs. Using a 5A adapter on a device that needs 2A provides safety headroom and allows the adapter to run cooler. However, voltage must match exactly.

Q: What is the difference between C13 and C14 connectors?

A: In the IEC 60320 standard, odd numbers (C13) refer to the female connector found on the cable end. Even numbers (C14) refer to the male inlet mounted on the device panel (like the back of a PC). They are mating pairs.

Q: Why does my AC connector spark when I plug it in?

A: A small spark is often caused by "inrush current" as the capacitors inside the power supply charge instantly. It is usually harmless. However, continuous arcing or sizzling sounds indicate a loose connection or a damaged socket that requires immediate replacement.

Q: Are all barrel jacks compatible if they fit in the hole?

A: No. Even if the outer diameter (5.5mm) fits, the inner pin diameter varies (2.1mm vs. 2.5mm). Additionally, the polarity (Center Positive vs. Center Negative) must match. A mismatch in polarity can instantly destroy the device's internal circuitry.

Q: How do I know if my AC connector is polarized?

A: Look at the plug face or the device label. Standard AC wall plugs (Type A) have one blade wider than the other (Neutral). On DC barrel jacks, look for a symbol with a center dot and a half-circle, indicating which part is positive (+) and which is negative (-).
