In today’s automotive landscape, vehicles are no longer just mechanical machines—they are intelligent, connected systems that rely heavily on electronic communication to function safely and efficiently. From navigation and media streaming to vehicle-to-everything (V2X) communication and telematics, modern cars are equipped with numerous subsystems that exchange high-speed data in real time.
To enable this complex web of information exchange, secure and reliable signal transmission is essential. FAKRA connectors have become the industry standard for facilitating high-frequency communications in automotive applications. These specialized RF connectors ensure that data flows consistently and accurately within the vehicle, making them a critical component in today’s connected vehicles.
What is a FAKRA Connector?
FAKRA stands for "Fachkreis Automobil", a German term meaning "specialist committee automotive." FAKRA connectors are RF (radio frequency) connectors designed specifically to meet the rigorous requirements of automotive environments. They are based on the standard ISO 20860, which defines their mechanical and electrical characteristics.

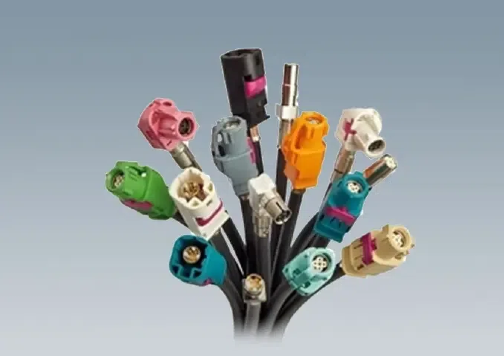

Unlike traditional RF connectors, FAKRA connectors come with a plastic housing and locking system that ensures secure mating, prevents misconnection, and enhances durability in harsh environments. Each connector is color-coded and mechanically keyed, allowing easy identification and preventing incorrect installation during vehicle assembly or maintenance.
Key Features of FAKRA Connectors
High-frequency transmission: Typically supports up to 6 GHz, suitable for GPS, LTE, and high-speed video applications.
Color-coded design: Each application (GPS, radio, camera, etc.) is represented by a specific color to reduce errors.
Secure locking mechanism: Provides a strong and vibration-resistant connection.
Automotive-grade durability: Engineered to withstand temperature extremes, moisture, and vibration typical in vehicles.

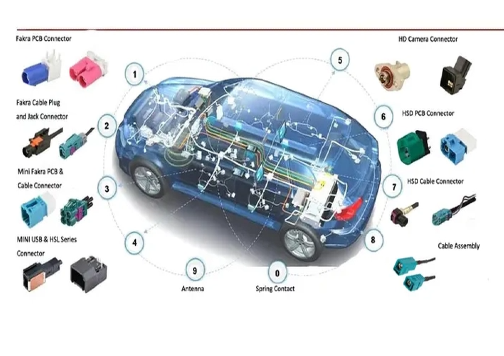

Applications of FAKRA Connectors in Automotive Communication Systems
FAKRA connectors play a vital role in enabling dependable high-frequency communication across various automotive systems. Designed specifically to meet the demanding requirements of modern vehicles, these connectors support a wide array of technologies that contribute to safety, convenience, navigation, and infotainment. Let’s explore some of the most prominent applications where FAKRA connectors prove indispensable in automotive communication systems.
1. GPS Navigation Systems
Global Positioning System (GPS) is one of the most common technologies found in today’s vehicles, used not only for navigation but also for location-based services and route optimization. To function accurately, GPS antennas must transmit weak satellite signals with minimal loss and interference.
FAKRA connectors are commonly used to connect these external GPS antennas to the vehicle’s head unit or navigation control module. Their high-frequency handling capabilities—typically supporting up to 6 GHz—ensure minimal signal loss, even over longer cable runs. Additionally, their excellent electromagnetic shielding properties and 50-ohm impedance matching help preserve signal integrity, ensuring precise geolocation and real-time route updates with minimal delays or positioning errors.
2. Satellite Radio and Digital Audio Broadcasting (SDARS & DAB)
Satellite radio (SDARS) and Digital Audio Broadcasting (DAB) offer drivers and passengers access to high-quality audio content, including music, news, and podcasts. These systems rely on stable RF communication between the roof-mounted antenna and the receiver unit inside the dashboard.
FAKRA connectors are engineered to provide a secure, low-loss connection between the antenna and radio system. They help maintain consistent audio quality even when the vehicle is moving through tunnels, urban canyons, or remote regions where signal reception can fluctuate. Their resistance to vibration and environmental conditions such as moisture and temperature variation ensures uninterrupted performance throughout the vehicle’s lifespan.
3. Rearview and Surround-View Camera Systems
Camera-assisted driving has become an integral part of vehicle safety and convenience features. Rearview cameras are now standard in many regions, and newer models often include side-view or 360-degree surround-view systems that give drivers a comprehensive visual understanding of their surroundings.
These systems require high-bandwidth transmission to deliver real-time, high-definition video feeds from multiple cameras to the vehicle’s central display or ECU. FAKRA connectors support analog and digital video formats and are specifically designed to reduce electromagnetic interference (EMI), ensuring sharp, distortion-free images. Their secure locking mechanisms prevent disconnections due to road vibrations, making them a reliable choice for safety-critical camera applications.
4. Vehicle-to-Everything (V2X) Communication
V2X technology is rapidly transforming the automotive industry by allowing vehicles to interact with one another (V2V), infrastructure (V2I), pedestrians (V2P), and networks (V2N). This real-time exchange of data enables applications such as collision avoidance, traffic signal coordination, and smart navigation.
To facilitate V2X communication, vehicles use dedicated short-range communication (DSRC) or cellular networks (C-V2X), both of which rely on high-frequency antenna systems. FAKRA connectors are used to link these external antennas with the V2X modules housed within the vehicle. Their robust design ensures low-loss data transmission, while their precise mechanical keying and color coding reduce assembly errors—both critical in mission-critical safety systems.
5. Telematics Systems
Telematics blends telecommunications and informatics to support functions such as remote diagnostics, vehicle tracking, fleet management, and emergency assistance (eCall). These systems include a central telematics control unit (TCU) that interfaces with various modules, sensors, and antennas spread throughout the vehicle.
FAKRA connectors serve as the bridge between these components, ensuring fast and reliable transmission of telemetry data. Their compact footprint allows for easy integration into space-constrained modules, while their high durability makes them suitable for long-term use in diverse automotive environments. Whether transferring diagnostic signals, location data, or wireless communication, FAKRA connectors enable seamless telematics operation.
Advantages of FAKRA Connectors in Automotive Communication
The FAKRA connector has become a staple in automotive communication systems, offering a unique combination of performance, reliability, and user-friendliness. As vehicles continue to evolve into complex, data-driven machines, the role of high-quality RF connectors has never been more crucial. Here’s why automotive manufacturers and design engineers consistently choose FAKRA connectors for in-vehicle communication:
1. High Reliability in Harsh Environments
Automobiles operate under some of the most challenging environmental conditions imaginable. From extreme heat and sub-zero cold to vibrations from rough roads and exposure to moisture, every component must withstand years of demanding use. FAKRA connectors are specifically designed for these challenges. Made with automotive-grade thermoplastics and durable metal shielding, they are compliant with stringent standards such as ISO 20860. These connectors can maintain electrical performance and mechanical stability across a wide temperature range and under constant vibration, ensuring longevity and minimizing the risk of signal failure or disconnection.
2. Enhanced Signal Integrity
Modern automotive systems rely on high-speed data and RF signal transmission for features like navigation, infotainment, cameras, and driver-assistance systems. Signal degradation can compromise both functionality and safety. FAKRA connectors provide superior signal integrity through low insertion loss, high return loss, and controlled impedance—typically at 50 ohms. These characteristics are crucial for transmitting high-frequency signals with minimal attenuation and interference. The result is clearer video, more accurate GPS tracking, and reliable communication in V2X systems.
3. Foolproof Installation
One of the standout features of FAKRA connectors is their color-coded and mechanically keyed housing. This design not only streamlines the assembly process but also drastically reduces the risk of mismating—an issue that can damage components or degrade signal quality. With up to 14 mechanical coding options and standardized color codes, FAKRA connectors make installation straightforward, especially in large manufacturing environments. Even during maintenance or component replacement, technicians can quickly and confidently identify the correct connections, improving service efficiency.
4. Compact and Modular Design
As automotive engineers work to integrate more electronic features into increasingly compact vehicle designs, space-saving components are essential. FAKRA connectors provide a compact yet robust solution, allowing high-performance RF communication in tight spaces. Their modular design also supports multiple connector types and configurations, making them ideal for modern infotainment systems, electronic control units (ECUs), and camera modules without compromising internal layout flexibility.
5. Versatile Connectivity
Another major advantage of FAKRA connectors is their versatility. Whether you're transmitting RF signals for satellite radio, data for telematics, or video for rearview cameras, FAKRA interfaces can handle it all. They are compatible with standard coaxial cables and support frequencies up to 6 GHz, making them a one-stop solution for a wide range of automotive communication applications. This reduces the need for multiple specialized connectors and simplifies system design across different vehicle models.
Conclusion
FAKRA connectors are essential to modern automotive communication systems, enabling reliable high-frequency signal transmission for GPS, entertainment, safety features, and telematics. As vehicles advance toward smarter, more autonomous technologies, the demand for secure, high-performance connectivity will only grow.
To explore reliable FAKRA connector solutions tailored to your design or integration needs, we recommend reaching out to Totek—a trusted provider of advanced RF connectors for the automotive industry. Whether you're an engineer, supplier, or system developer, Totek offers expert guidance and high-quality components to support your project. Visit Totek to learn more or get in touch with their team today.
