In today’s connected world, electronic communication systems are becoming more complex and demanding—especially in automotive and industrial applications. From infotainment to safety systems, data transmission between modules needs to be fast, reliable, and interference-free. A key enabler of this communication is the FAKRA connector.
FAKRA (Fachkreis Automobil, a German term meaning "automotive expert group") connectors are widely used in automotive electronics for their robustness, standardization, and ability to handle high-frequency signals. Selecting the right FAKRA connector for your design project isn’t just a matter of plug-and-play—it requires a thorough understanding of system requirements, environmental factors, and signal integrity considerations.
Understanding the Key Parameters of FAKRA Connectors
Before diving into selection, it’s essential to understand the technical specifications and design elements of FAKRA connectors. These parameters determine whether a connector will perform efficiently within your system.
1. Connector Type: Plug vs. Jack
FAKRA connectors are typically available in male (plug) and female (jack) configurations. The plug usually connects to a coaxial cable, while the jack is mounted on a device, such as a GPS receiver, camera module, or telematics unit. Knowing which gender is needed for each side of the connection is fundamental to ensuring proper mating and mechanical fit.
2. Frequency Range and Signal Type
FAKRA connectors support a frequency range up to 6 GHz, making them suitable for various signal types, including:
Video: Analog and digital video feeds from cameras
Audio: Signals to/from entertainment modules
RF Data: GPS, LTE, Bluetooth, Wi-Fi, satellite radio
Different applications have varying bandwidth requirements. For instance, rear-view cameras demand high bandwidth for real-time video, while GPS relies on stable RF transmission.
3. Impedance Matching
Most FAKRA connectors are designed with a 50-ohm impedance, which ensures optimal signal transmission with minimal reflections. Impedance mismatches can lead to data loss, signal degradation, or even complete failure in communication. Always verify that the FAKRA connector matches the impedance of the system and cable.
4. VSWR, Insertion Loss, and Return Loss
VSWR (Voltage Standing Wave Ratio) measures signal reflection; lower is better.
Insertion Loss refers to the signal strength reduction caused by the connector; minimal loss is ideal.
Return Loss indicates the amount of signal reflected due to impedance mismatch.
Reviewing these specifications helps ensure high signal integrity, particularly for high-frequency or mission-critical applications.
Matching Connector Type to Design Requirements
When integrating a FAKRA connector into your automotive or industrial design, it’s critical to match the connector type to the system’s specific demands. Failing to consider the nuances of your application can result in signal interference, connection failure, or costly rework during installation or maintenance. Below, we explore how to match connector selection to design requirements across three key areas: application, mounting method, and environmental conditions.

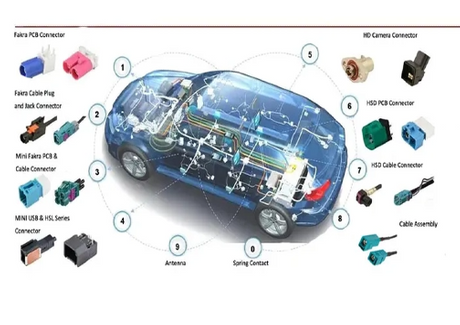

1. Based on Application
Automotive systems vary widely in their signal types, bandwidth requirements, and sensitivity to interference. Understanding the purpose of each subsystem helps guide your selection of the appropriate FAKRA connector.

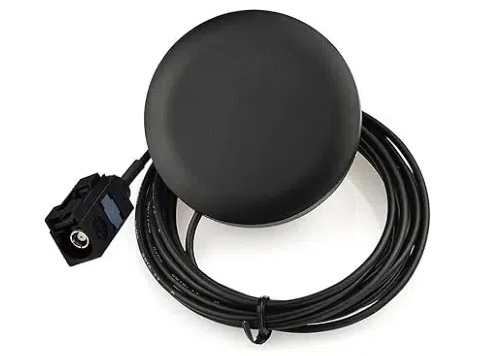

GPS Navigation: GPS modules require high-frequency RF signals for accurate geolocation. These systems commonly utilize purple-coded FAKRA connectors, which are optimized for minimal insertion loss and excellent return loss to ensure signal integrity over long distances.
Wi-Fi and Bluetooth: These short-range wireless systems demand connectors that support moderate-to-high data throughput while minimizing interference. Blue-coded FAKRA connectors are ideal here, offering stable signal transmission within the vehicle's complex electromagnetic environment.
Cameras (Rear-View, Surround-View, Dashcams): Camera systems require connectors capable of transmitting high-resolution analog or digital video. These connectors must offer strong shielding and low signal distortion. Beige-coded FAKRA connectors are frequently used, designed for optimal video quality and robust electromagnetic compatibility (EMC).

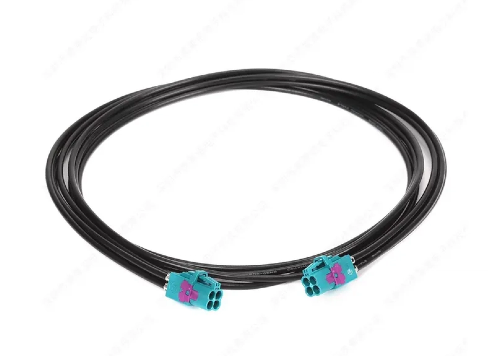

LTE and 5G Communications: Cellular connectivity is central to modern telematics and infotainment systems. Aqua-coded FAKRA connectors are typically selected for LTE and 5G due to their ability to support high-frequency, high-bandwidth data transmission with advanced shielding against electromagnetic interference (EMI).
Each application imposes different electrical, mechanical, and shielding requirements, so choosing the wrong type could compromise the entire communication system.
2. Based on Mounting Method
How you mount the FAKRA connector also plays a crucial role in system integration. The mechanical form factor should align with the product’s enclosure design, assembly process, and maintenance accessibility.
PCB Mount (Board Edge): Ideal for integrating the connector directly onto a circuit board within an ECU or infotainment module. It offers compact design and is commonly used in factory-assembled electronics.
Bulkhead Mount (Panel Mount): These connectors pass through a panel or enclosure wall and are suitable for rugged environments, such as dashboard or trunk interfaces. They allow easy access and are often used for serviceable parts of the vehicle.
Cable Mount (Inline): Used to terminate coaxial cables directly, often for point-to-point connections between modules. These connectors require proper cable type matching—typically RG-174, RG-58, or RG-316 coaxial cables—to maintain signal integrity and mechanical strength.
Carefully selecting the right mounting option helps reduce mechanical stress, simplifies assembly, and ensures long-term performance.
3. Based on Environmental Conditions
Automotive environments are demanding—connectors must perform reliably under a range of environmental stressors. A properly selected FAKRA connector ensures that the system remains operational and maintenance-free throughout its lifespan.
Water and Dust Protection: For applications in external or exposed areas, like roof antennas or rear bumper sensors, connectors should meet IP67 or higher ratings. These ensure protection against water immersion and dust ingress, preserving signal reliability.
Temperature Range: Vehicles can experience extreme temperatures from arctic cold to engine heat. Most automotive-grade FAKRA connectors are designed to operate from -40°C to +105°C, ensuring they remain stable even in engine compartments or sun-exposed dashboards.
Shock and Vibration Resistance: In mobile applications, connectors are constantly subjected to movement, vibrations, and shocks. FAKRA connectors are engineered with robust locking mechanisms and durable materials to resist loosening or signal disruption in high-vibration areas like wheel wells or engine bays.
Choosing a connector that aligns with environmental demands not only enhances system performance but also extends product lifespan and reduces the likelihood of field failures.
Identifying FAKRA Color Coding and Keying
A distinctive feature of the FAKRA connector is its color-coded housing and mechanical keying system. These features prevent connection errors and ensure fast, foolproof assembly.

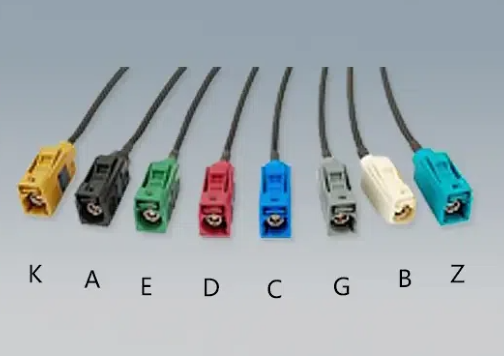

Color Coding
Each FAKRA connector color corresponds to a specific application:
This standardization simplifies installation and maintenance, helping technicians quickly identify correct connections even in dense wire harnesses.
Mechanical Keying
In addition to color, each connector features a unique keying pattern. This ensures connectors only mate with the correct counterpart, minimizing the risk of electrical or mechanical mismatches. During prototyping or system design, always verify key compatibility to avoid redesigns or field issues.
Verifying Quality Certifications and Compatibility
Selecting a high-quality FAKRA connector means looking beyond physical fit and electrical specs. Industry compliance and testing help ensure long-term reliability and system integrity.
1. Industry Standards
Ensure that the connector complies with:
ISO 20860: Specifies mechanical and electrical requirements for FAKRA connectors in road vehicles.
USCAR-17: Defines test methods for automotive RF connectors.
RoHS and REACH: Environmental and safety compliance.
Working with ISO-certified suppliers helps guarantee quality across batches and compatibility with OEM specifications.
2. System Compatibility Testing
In multi-vendor environments, always conduct mechanical and electrical compatibility tests:
These steps are especially critical when mixing connectors from different suppliers or integrating into existing platforms.
Common Selection Mistakes and How to Avoid Them
Even experienced engineers can fall into traps during FAKRA connector selection. Here are some common missteps—and how to avoid them.
Mistake 1: Choosing the Wrong Color or Key
Using a connector with the wrong color coding can lead to mismatched systems, especially during repairs. Always double-check manufacturer datasheets and system requirements.
Mistake 2: Ignoring Environmental Factors
A connector that performs well in the lab might fail under real-world heat, vibration, or moisture. Always choose connectors with appropriate IP ratings and automotive-grade materials.
Mistake 3: Overlooking Cable Compatibility
Mismatches between the connector and coaxial cable type can introduce signal loss or physical damage. Confirm compatibility with both the cable’s diameter and electrical characteristics.
Mistake 4: Skipping Early Design Considerations
Leaving connector selection until the end of the project can lead to space constraints or rework. Integrate connector selection into early design planning to ensure optimal fit and routing.
Conclusion
Choosing the right FAKRA connector is a critical step in ensuring the reliability, performance, and longevity of any automotive or industrial communication system. By understanding the technical parameters, application needs, environmental challenges, and standardized coding systems, engineers can make informed decisions that prevent costly mistakes down the line.
From GPS and cameras to telematics and V2X systems, FAKRA connectors serve as the backbone of high-frequency signal transmission in today’s connected vehicles. As technology advances and vehicles become more autonomous and data-driven, the importance of choosing high-quality, well-specified connectors will only grow.
To learn more about FAKRA connectors and explore a wide range of models for your specific application, we recommend reaching out to Totek. As a trusted supplier of high-performance automotive connectors, Totek offers expert advice, certified products, and support to ensure your project succeeds from prototype to production.
